1)Product introduction

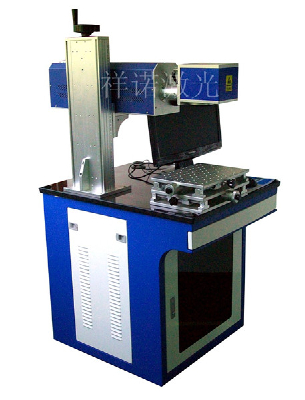

Our company produces CO2 (carbon dioxide)  XN - CO2-30W laser marking machine adopts the American  COHERENT laser (optional domestic laser)which combine import optical parts and control system  perfectly,so the machine is extremely stable. Full computer production,so change is flexible and convenient. Using WINDOWS interface,it not only can hold concurrently CORELDRAW, AUTOCAD, PHOTOSHOP and so on many kinds of graphical editing software output files,but also can undertake various graphics words and barcodes etc marking,and supports a variety of graphical file type used. CO2 (carbon dioxide) laser marking machine has some features,such as small heat affected zone , fine processing, low cost, easy to operate, no pollution, can accomplish some process that conventional methods cannot achieve. CO2 (carbon dioxide) laser marking machine precision cutting carved embroidered effectiveness and efficiency are very good, can be used for rapid sampling and mass production. CO2 (carbon dioxide) laser marking machine belong to non-contact processing, do not produce the mechanical squeezing or mechanical pressure.

2)Applicable scope:

It is used in leather, wood, paper, acrylic, ceramics, glass, EP materials; PVC, ABS, PC, etc. Various plastic products for marking.It is suitable for marking varieties of metal materials,and electronic devices IC, capacitance , Water bottle, plastic bottles , oil Food, medicine, cosmetic packaging and most nonmetal material. Laser marking is accurate, high speed, and anti-counterfeiting is extremely strong,it have been widely used in various fields nowadays.

3)Technology Parameter:

Type: XN-CO2-30W

Biggest laser power: 30W

Laser wavelength: 1064nm

Beam quality: M2 < 1.2

Laser repeat frequency: ≤30KHz

Marking scope: 110 x 110mm (optional)

Marking line speed:≤7000mm/s

Minimum line width: 0.1 mm

Minimum character size : 0.3 mm

Repeat precision: 0.01 mm

Input power: 0.8KW

Electrical source: 220V ±15%/ 50Hz / 10A
