1)Product introduction

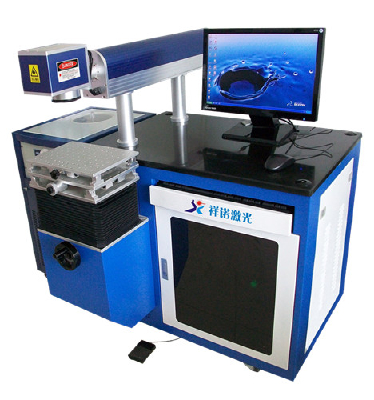

Our company produces XN-DP-50W (50W Diode side-pump laser marking machine) key parts adopt import from Europe and America , so it has a stable performance,a good beam quality,a high cost performance and long life.Diode side pump laser marking machine adopts an extremely fine laser beam which is generated after focusing on processing, high-energy, belongs to non-contact  processing, do not produce the mechanical squeezing or mechanical stress.Its laser marking heat affected zone is small, processing is fine, cost is low, and it is easy to operate with no pollution, can accomplish some conventional methods cannot achieve process. Semiconductor laser marking machine software runs on WINDOWS platform, Chinese interface, can compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and so on many kinds of software file formats, such as PLT, DXF, AI, BMP, JPG, GIF, etc, also can use directly TTF SHX and dictionaries.

2)Advantages

1. High efficiency (up to 20 %), less consumption.

2. Long life: some light power measurement in the measurement equipment manufacturer of the laser light source change the initial He - laser into diode laser , in order to get the best machinery life (He - en general for 10 ^ laser life, while diode laser four HR for 10 ^ 5HR life, a difference of ten times), especially suitable for on-site long operation.

3. It can achieve a switch function instantly,so it is appropriate communication purposes. Semiconductor laser marking machine will be settled soon when starting , and with circuit modulation is very appropriate, such as the output pulse wave modulation method can be used measured distance (and He - en 30 minutes of laser must boot only stable, this is absolutely not the semi-conductor laser).

4. Available in different wavelength: using periodic table, for example Ⅲ/V family gaas chemical compounds can be made of laser diode , when the current is conveyed pn interface, because of through different compounds to send out all visible laser and not visible laser.Semiconductor laser just change the proportion of combined elements so as to change the different energy interval, and different energy interval, provide a different output wavelength. Because of the infrared and red wavelengths in communication and measurement, it is easily with the various sensors on with and get very wide range of purposes.

5. Mechanical properties aspects:Have strong, weight light advantages   .

3)Areas of application:

1. Metallic materials: stainless steel, copper, iron, aluminum and other metal and alloy,are often used for watchcase, MP3, mobile phone hull etc. laser marking.

2. Metal oxidation, phosphating, plating surface marking: hardware products, U plate shell, etc.

3. EP materials laser marking: electronic component packaging, IC, etc.

4. ABS plastic: electrical housing, electronic products and other product serial number, LOGO, etc.

5. Ink and paint: mobile phone key-press, panel, daily necessities, printing products.

4)Technology Parameter:

Type: XN-DP-100W

Biggest laser power:100W

Laser wavelength: 1064nm

Beam quality: M2 < 3.5

Laser repeat frequency: ≤50KHz

Marking scope: 110 x 110mm (optional)

Marking depth: ≤0.3mm

Marking line speed: ≤7000mm/s

Minimum line width : 0.015 mm

Minimum character size :0.3 mm

Repeat precision:±0.01 mm

Input power:1.3KW

Electrical source:220V/single-phase / 50Hz / 15A
