1)Advantages

1. Its processing speed is a traditional marking machine 2-3 times which is very fast.Electromechanical light conversion efficiency of optical fiber laser marking machine is very high, the power consumption is less than 500W which is 1/10 of a lamp pumped solid laser marking machine,so it can save energy consumption expenditure.

2. Its beam quality is much better than traditional solid laser marking machine and it is base model (TEM00) output and its focusing flare diameter is less than 20um.Divergence Angle is 1/4 of laser diode pumped.It is especially suitable for fine, precision marking.

3. The function of marking software is powerful,is compatible Coreldraw, AutoCAD, Photoshop etc.software files;       support PLT, PCX, DXF, BMP, etc, can use directly SHX and TTF fonts; support the automatic coding, print serial number, batch number, date, bar code, two dimensional barcode, automatic jump number, etc.

2)Areas of application:

Optical fiber laser marking machine has already been used in electronic industry and automobile industry, tools and measuring tools, aerospace, instrumentation, packaging industry, medical products, household appliances, keyboard, panel, advertising signs, certificates CARDS, daily articles, diamond jewellery, etc.

1. applicable industries: mobile phone key-press, plastic pervious to light buttons, electronic components, integrated circuit (IC), electrical appliances, communication products, sanitary ware, tool accessories, cutting tools, glasses clocks and watches, jewelry, auto parts, bags decorative clasp, cookware, stainless steel products, etc.

2.Applicable materials: any metal (including rare metal), engineering plastic, electroplating materials, coating material, coating materials, plastic rubber, epoxy resin, ceramics, etc

3)Technology Parameter:

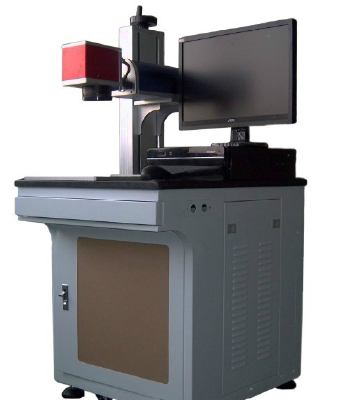

Type: XN-FM-10W

Biggest laser power: 10W

Laser wavelength: 1064nm

Power adjustment range:0-100%

Beam quality: M2 < 1.2

Laser repeat frequency:20- 80KHz

Marking scope: 100 x 100mm

Marking depth: ≤0.2 mm

Minimum focusing flare: 0.005 mm

Minimum character height: 0.15 mm

Maximum linear marking speed: 12000mm/s

Standard sculpture range: 100mm x 100mm

Matching sculpture range: 50 x 50 150mm x 150mm

Control interface: USB

Lasermodule life: > 100000 hours

Repeat precision:±0.001mm

The power consumption: < 0.5 KW

Electrical source: 220V±22V/ 50Hz / 12A

Galvanometer scanning galvanometer: high performance

Cooling mode: high-precision temperature/closed loop cooling

Appearance  size:410mmx 650mm xx 1200mm

Weight: 150KG
