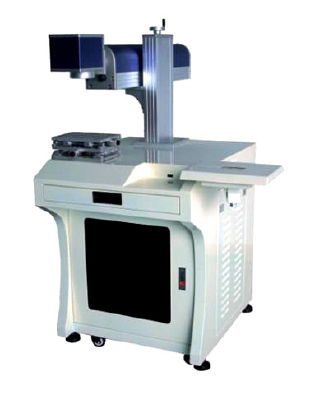

1)Product introduction

Optical fiber laser marking machine applied the laser marking machine system that was reseached and developed and manufactured by the most advanced laser technology in the  world. It uses German IPG fiber laser output, then  realize marking function through import laser scanning galvanometer system. Electromechanical light conversion efficiency of optical fiber laser marking machine is very high,even to reach above 20% (YAG around 3%),so it can save much electric energy. Optical fiber laser marking machine applys air cooling which has good performance of  cooling way, the compact,  good quality of output beam,and resonator no optical lenses, with avoided adjustment, free maintenance, high reliability etc. performance. It is widely used in plastic keyboard, plastic buttons, charger, cell phone pervious to light  keys etc.marking job. It is especially suitable for some  higher fields in depth, smoothness, precision , such as clocks and watches, mold industry, bitmap marking, etc.

2)Advantages

1. Its processing speed is a traditional marking machine 2-3 times which is very fast.Electromechanical light conversion efficiency of optical fiber laser marking machine is very high, the power consumption is less than 500W which is 1/10 of a lamp pumped solid laser marking machine,so it can save energy consumption expenditure.

2. Its beam quality is much better than traditional solid laser marking machine and it is base model (TEM00) output and its focusing flare diameter is less than 20um.Divergence Angle is 1/4 of laser diode pumped.It is especially suitable for fine, precision marking.

3. The function of marking software is powerful,is compatible Coreldraw, AutoCAD, Photoshop etc.software files;       support PLT, PCX, DXF, BMP, etc, can use directly SHX and TTF fonts; support the automatic coding, print serial number, batch number, date, bar code, two dimensional barcode, automatic jump number, etc.

3)Areas of application:

Optical fiber laser marking machine has already been used in electronic industry and automobile industry, tools and measuring tools, aerospace, instrumentation, packaging industry, medical products, household appliances, keyboard, panel, advertising signs, certificates CARDS, daily articles, diamond jewellery, etc.

1. applicable industries: mobile phone key-press, plastic pervious to light buttons, electronic components, integrated circuit (IC), electrical appliances, communication products, sanitary ware, tool accessories, cutting tools, glasses clocks and watches, jewelry, auto parts, bags decorative clasp, cookware, stainless steel products, etc.

2.Applicable materials: any metal (including rare metal), engineering plastic, electroplating materials, coating material, coating materials, plastic rubber, epoxy resin, ceramics, etc

4)Technology Parameter:

Type: XN-FM-20W

Biggest laser power: 20W

Laser wavelength: 1064nm

Power adjustment range:0-100%

Beam quality: M2 < 1.2

Laser repeat frequency:20- 80KHz

Marking scope: 100 x 100mm

Marking depth: ≤0.2 mm

Minimum focusing flare: 0.005 mm

Minimum character height: 0.15 mm

Maximum linear marking speed: 12000mm/s

Standard sculpture range: 100mm x 100mm

Matching sculpture range: 50 x 50 150mm x 150mm

Control interface: USB

Lasermodule life: > 100000 hours

Repeat precision:±0.001mm

The power consumption: < 0.5 KW

Electrical source: 220V±22V/ 50Hz / 12A

Galvanometer scanning galvanometer: high performance

Cooling mode: high-precision temperature/closed loop cooling

Appearance  size:410mmx 650mm xx 1200mm

Weight: 150KG
